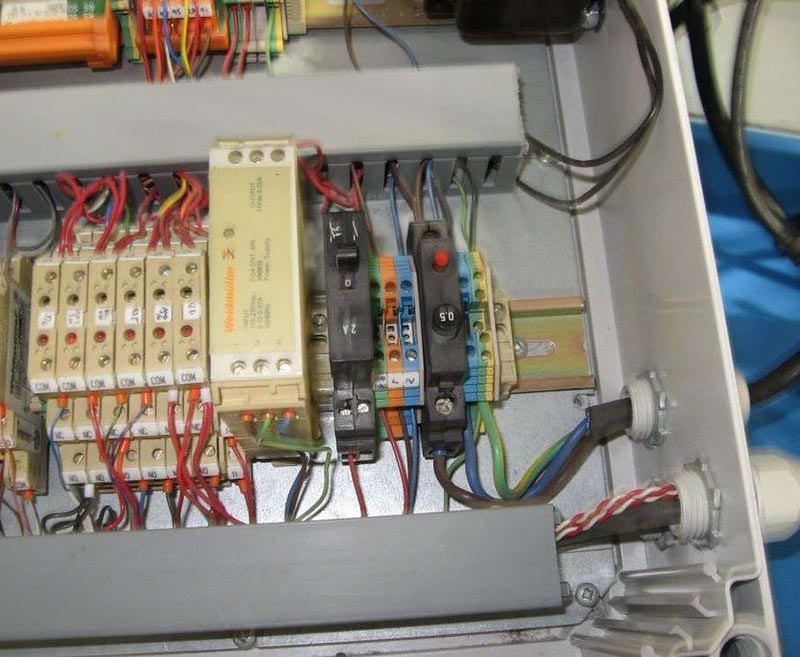

MPXC Easy to install and keeps wires together, the closed slot wire duct is able to hold a bundle of wires and with its slotted design, each wire can be run to its desired location. The open slot wire duct has wide fingers that give additional cable support and allow for breakouts which make the re-running of cables simple.
Technical data:
Material: PVC
Working temperature: -40℃~+65℃
Color: gray/white
Approval: RoHS
| OPEN | ||||||||
| Part No. | H(mm) | W(mm) | Narrow | Wide | ||||
| W1(mm) | W2(mm) | W1(mm) | W2(mm) | W1(mm) | W2(mm) | |||
| MPXC-O-20*15 | 20 | 15 | 4 | 6 | 5 | 5 | / | / |
| MPXC-O-20*20 | 20 | 20 | 4 | 6 | 5 | 5 | / | / |
| MPXC-O-20*25 | 20 | 25 | 4 | 6 | 5 | 5 | / | / |
| MPXC-O-30*15 | 30 | 15 | 4 | 6 | 5 | 5 | / | / |
| MPXC-O-30*20 | 30 | 20 | 4 | 6 | 5 | 5 | / | / |
| MPXC-O-30*25 | 30 | 25 | 4 | 6 | 5 | 5 | / | / |
| MPXC-O-30*30 | 30 | 30 | 4 | 6 | 5 | 5 | / | / |
| MPXC-O-30*35 | 30 | 35 | 4 | 6 | 5 | 5 | / | / |
| MPXC-O-30*40 | 30 | 40 | 4 | 6 | 5 | 5 | / | / |
| MPXC-O-35*25 | 35 | 25 | 4 | 6 | 5.5 | 5.5 | / | / |
| MPXC-O-35*30 | 35 | 30 | 4 | 6 | 5.5 | 5.5 | / | / |
| MPXC-O-35*35 | 35 | 35 | 4 | 6 | 5.5 | 5.5 | / | / |
| MPXC-O-35*40 | 35 | 40 | 4 | 6 | 5.5 | 5.5 | / | / |
| MPXC-O-40*25 | 40 | 25 | 4 | 6 | 6 | 8 | 8 | 10 |
| MPXC-O-40*30 | 40 | 30 | 4 | 6 | 6 | 8 | 8 | 10 |
| MPXC-O-40*35 | 40 | 35 | 4 | 6 | 6 | 8 | 8 | 10 |
| MPXC-O-40*40 | 40 | 40 | 4 | 6 | 6 | 8 | 8 | 10 |
| MPXC-O-40*60 | 40 | 60 | 4 | 6 | 6 | 8 | 8 | 10 |
| MPXC-O-45*33 | 45 | 33 | 4 | 6 | 6 | 8 | / | / |
| MPXC-O-45*45 | 45 | 45 | 4 | 6 | 6 | 8 | / | / |
| MPXC-O-50*25 | 50 | 25 | 4 | 6 | 6 | 8 | 8 | 10 |
| MPXC-O-50*30 | 50 | 30 | 4 | 6 | 6 | 8 | 8 | 10 |
| MPXC-O-50*35 | 50 | 35 | 4 | 6 | 6 | 8 | 8 | 10 |
| MPXC-O-50*40 | 50 | 40 | 4 | 6 | 6 | 8 | 8 | 10 |
| MPXC-O-50*45 | 50 | 45 | 4 | 6 | 6 | 8 | 8 | 10 |
| MPXC-O-50*50 | 50 | 50 | 4 | 6 | 6 | 8 | 8 | 10 |
| MPXC-O-50*55 | 50 | 55 | 4 | 6 | 6 | 8 | 8 | 10 |
| MPXC-O-50*60 | 50 | 60 | 4 | 6 | 6 | 8 | 8 | 10 |
| MPXC-O-50*80 | 50 | 80 | 4 | 6 | 6 | 8 | 8 | 10 |
| MPXC-O-50*100 | 50 | 100 | 4 | 6 | 6 | 8 | 8 | 10 |
| MPXC-O-60*25 | 60 | 25 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-60*35 | 60 | 35 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-60*40 | 60 | 40 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-60*45 | 60 | 45 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-60*50 | 60 | 50 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-60*60 | 60 | 60 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-60*80 | 60 | 80 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-65*33 | 65 | 33 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-65*45 | 65 | 45 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-65*65 | 65 | 65 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-80*35 | 80 | 35 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-80*40 | 80 | 40 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-80*45 | 80 | 45 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-80*50 | 80 | 50 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-80*60 | 80 | 60 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-80*80 | 80 | 80 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-80*100 | 80 | 100 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-100*50 | 100 | 50 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-100*80 | 100 | 80 | 4 | 6 | / | / | 8 | 10 |
| MPXC-O-100*100 | 100 | 100 | 4 | 6 | / | / | 8 | 10 |
| CLOSED | ||||
| Part No. | H(mm) | W(mm) | Narrow | |
| W1(mm) | W2(mm) | |||
| MPXC-20*15 | 20 | 15 | 6 | 8 |
| MPXC-20*20 | 20 | 20 | 6 | 8 |
| MPXC-20*25 | 20 | 25 | 6 | 8 |
| MPXC-30*15 | 30 | 15 | 6 | 8 |
| MPXC-30*25 | 30 | 25 | 6 | 8 |
| MPXC-30*30 | 30 | 30 | 6 | 8 |
| MPXC-30*35 | 30 | 35 | 6 | 8 |
| MPXC-30*40 | 30 | 40 | 6 | 8 |
| MPXC-35*25 | 35 | 25 | 6 | 8 |
| MPXC-35*30 | 35 | 30 | 6 | 8 |
| MPXC-35*35 | 35 | 35 | 6 | 8 |
| MPXC-35*40 | 35 | 40 | 6 | 8 |
| MPXC-40*25 | 40 | 25 | 6 | 8 |
| MPXC-40*30 | 40 | 30 | 6 | 8 |
| MPXC-40*35 | 40 | 35 | 6 | 8 |
| MPXC-40*40 | 40 | 40 | 6 | 8 |
| MPXC-40*60 | 40 | 60 | 6 | 8 |
| MPXC-45*33 | 45 | 33 | 6 | 8 |
| MPXC-45*45 | 45 | 45 | 6 | 8 |
| MPXC-50*25 | 50 | 25 | 6 | 8 |
| MPXC-50*30 | 50 | 30 | 6 | 8 |
| MPXC-50*35 | 50 | 35 | 6 | 8 |
| MPXC-50*40 | 50 | 40 | 6 | 8 |
| MPXC-50*45 | 50 | 45 | 6 | 8 |
| MPXC-50*50 | 50 | 50 | 6 | 8 |
| MPXC-50*55 | 50 | 55 | 6 | 8 |
| MPXC-50*60 | 50 | 60 | 6 | 8 |
| MPXC-50*80 | 50 | 80 | 6 | 8 |
| MPXC-50*100 | 50 | 100 | 6 | 8 |
| MPXC-60*25 | 60 | 25 | 6 | 8 |
| MPXC-60*35 | 60 | 35 | 6 | 8 |
| MPXC-60*40 | 60 | 40 | 6 | 8 |
| MPXC-60*45 | 60 | 45 | 6 | 8 |
| MPXC-60*50 | 60 | 50 | 6 | 8 |
| MPXC-60*60 | 60 | 60 | 6 | 8 |
| MPXC-60*80 | 60 | 80 | 6 | 8 |
| MPXC-65*33 | 65 | 33 | 6 | 8 |
| MPXC-65*45 | 65 | 45 | 6 | 8 |
| MPXC-65*65 | 65 | 65 | 6 | 8 |
| MPXC-80*35 | 80 | 35 | 6 | 8 |
| MPXC-80*40 | 80 | 40 | 6 | 8 |
| MPXC-80*45 | 80 | 45 | 6 | 8 |
| MPXC-80*50 | 80 | 50 | 6 | 8 |
| MPXC-80*60 | 80 | 60 | 6 | 8 |
| MPXC-80*80 | 80 | 80 | 6 | 8 |
| MPXC-80*100 | 80 | 100 | 6 | 8 |
| MPXC-100*50 | 100 | 50 | 6 | 8 |
| MPXC-100*80 | 100 | 80 | 6 | 8 |
| MPXC-100*100 | 100 | 100 | 6 | 8 |
Customized sizes and colors are available upon requests.
