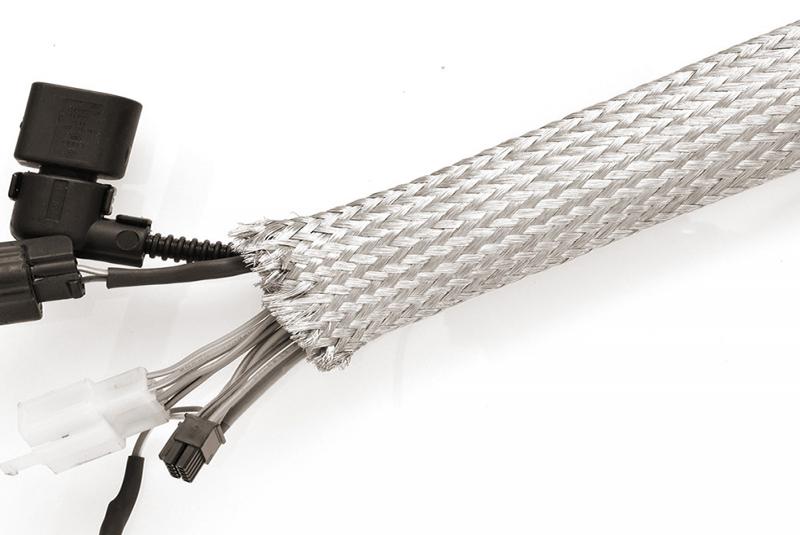

JDD-DXT Tinned copper shielding sleeving offers a good solution, for which EMI shielding and light weight are required at the same time. It also provides exceptional abrasion resistance and cut-through resistance with excellent flexibility.
Application:
This product has a variety of industrial application in high speed train, underground, aerospace and high-tech special products.
Technical data:
Material: Tinned copper
Operating range:-60℃~+200℃
Melt Point：1084±5℃
Standard color:Tinned color
Certificate:ROHS
Other features:Oil and Chemical resistance
Cutting tool:Scissors
| Datasheet | |||
| Part No. | Flat Width | Nominal cross-sectional area(mm²） | Packing(m) |
| DXT-003 | 3.2 | 1.5 | 50 |
| DXT-006 | 6.3 | 2.5 | |
| DXT-007 | 7.0 | 4 | |
| DXT-010 | 10.0 | 6 | |
| DXT-012 | 12.7 | 8 | |
| DXT-016 | 16.0 | 10 | |
| DXT-020 | 20.0 | 12 | |
| DXT-022 | 22.0 | 16 | |
| DXT-025 | 25.0 | 20 | |
| DXT-030 | 30.0 | 25 | |
unit：mm
Notes:
1.Special packages and sizes can be supplied upon request.
2. All the numerical data are average or typical values, not including customized sizes.
